The touchscreen

Control technology of the

future

The fully integrated REX touchscreen is employed on all REX vacuum filling machines of types RVF 327 to 913 and ensure simple operation and setting for the user. All set parameters such as weight, speed etc. are constantly monitored and can be changed by the operator at all times.

Of course, all attachments, clipping machines as well as the REX twisting and calibration system can be controlled from the touchscreen. The result is optimum efficiency. In addition to the hard disc, all control data are also save to a memory card to ensure that no settings are lost. The integral service interval indicator draws the user’s attention to pending maintenance operations.

REX - the servo-drive pioneers

The REX servo drive, successfully used in all REX appliance for the last 15 years, is capable of an even more powerful performance in the latest drive design. It stands out for its minimal power consumption coupled with optimum efficiency. Other than hydraulic drives, REX servo drivers are almost maintenance-free. Thanks to many years of pioneering work by REX in the field of servo drive technology, we are still proud to maintain our leading position. In general, the REX servo drive stands for:

· Almost maintenance-free over many years
· Exact portioning
· Lowest possible energy consumptionh
· Runs extremely quietly and smoothly
· Stable even with great stress variations

All REX servo regulators, same as all other REX electronic components are built into a closed switch cabinet, providing optimum protection against dirt, dust, water and moisture. The switch cabinet can be pulled out and thus easy to maintain.

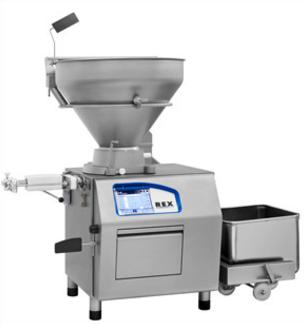

The REX 400 The all-rounder for all business sizes

The 400 Series has shown itself to be flexible like the RVF 540: this is as suitable for the smaller or medium-sized meat-processing operations as it is for larger, highly specialised companies.

Its smooth surface, hygienically designed machine housing is intended to save space, is self-supporting and made entirely of stainless steel. The reinforced model of the large cell-feed system guarantees extraordinary portioning accuracy for a maximum service life. No crushing or smearing: it also guarantees transport that protects all the fillings, especially for larger sausage meat portions, pieces of meat or raw sausage product applications. The rotors are available with eight, twelve or 14 slide gates, alternatively also with blind vanes.

Thanks to the newly developed swing arm elevator , the hopper of the RVF 400 can be filled simply and without any mess. The hoppers are available in a variety of sizes to suit the particular operation.


The REX RVF 911 - the power house

The RVF 911 is designed for industrial use in meat-processing businesses as well as larger, sometimes highly specialized, processing units. It particular feature is its incredible filling capacity. The further increase in throughput compared with the RVF 500 and 700 Series represents the optimum solution for individual applications, but also for incorporation into complete line solutions with various clipping machines or other attachments. The housing with its smooth and hygienic design is self-supporting and made completely from stainless steel.

The feed system, whose diameter has been further enlarged compared to the 500 and 700 series, is truly the heart of the appliance and ensures greatest portioning precision. The feed systems come with , 16 or 6 vanes, or optionally with blind vanes. The appliance has been designed in such a way that the during cleaning water can run out of the feed system unaided.

As an option, the RVF 911 can be supplied with a fully integrated lift and swing arm loading device for standard 200 or 300 litre trolleys. Its drive is fully integrated into the housing, thus assisting the simple and fast cleaning of the machine. The large 350 litre hopper version ensures maximum loading, but also the fast and easy cleaning when changing charges. The feed screw in the hopper ensures the optimum feed rate for all non-viscous or viscous feed charges from the hopper to the feed system.

The standard touchscreen controls guarantee operators easy use in all application and is designed for the full range of applications. It goes without saying that the RVF 911 can always be fitted with a rotating or rigid case holding device to make it easier to twist off artificial or natural sausage skins.

The RVF 911 can easily be equipped with REX filling mincer technology, thus providing users with a wide range of possible applications
.

The REX RVF 740 – Innovative top solution

The RVF 740 is designed for small and medium meat-processing businesses as well as larger, sometimes highly specialized, processing units. The smooth and hygienically design housing with larger dimensions than the 540 series is self-supporting and completely made from stainless steel. The extra robust vane cell feed system ensures the greatest portioning precision with maximum working time.

It ensures that all charges are transported as gently as possible without any squashing, squeezing or tearing, especially for larger sausage meat charges or larger pieces of meat. The feed systems come with 16, 14 or 6 vanes, or optionally with blind vanes.

As an option, the RVF 740 can be supplied with a fully integrated lift and swing arm loading device. Its drive is fully integrated into the housing, thus assisting the simple and fast cleaning of the appliance. Hoppers are available in two different sizes appropriate for the respective size of the business.


The REX 327  - Simple operation - easy to understand.

The RVF 327 is designed for small and medium enterprises with frequent changes in the product range and standard quantities of sausage meat. Reliability, fast and easy cleaning, minimization of residue and low energy costs are the main features of the RVF 327.

The vane cell feed system made of wear-resistant stainless steel guarantees a long service life and the highest product quality. It ensures gentle transport of all charges and minimum air pockets in the sausage meat.

It goes without saying that the RVF 327 can always be fitted with a rotating or rigid case holding device to make it easier to twist off artificial or natural sausage skins.
